The Horizontal CNG Cooler & Vertical CNG Cooler range is built to provide high-performance air-cooled solutions for gas compression systems. With robust engineering and adherence to international quality standards, these coolers ensure optimal thermal performance and longevity under challenging industrial conditions.

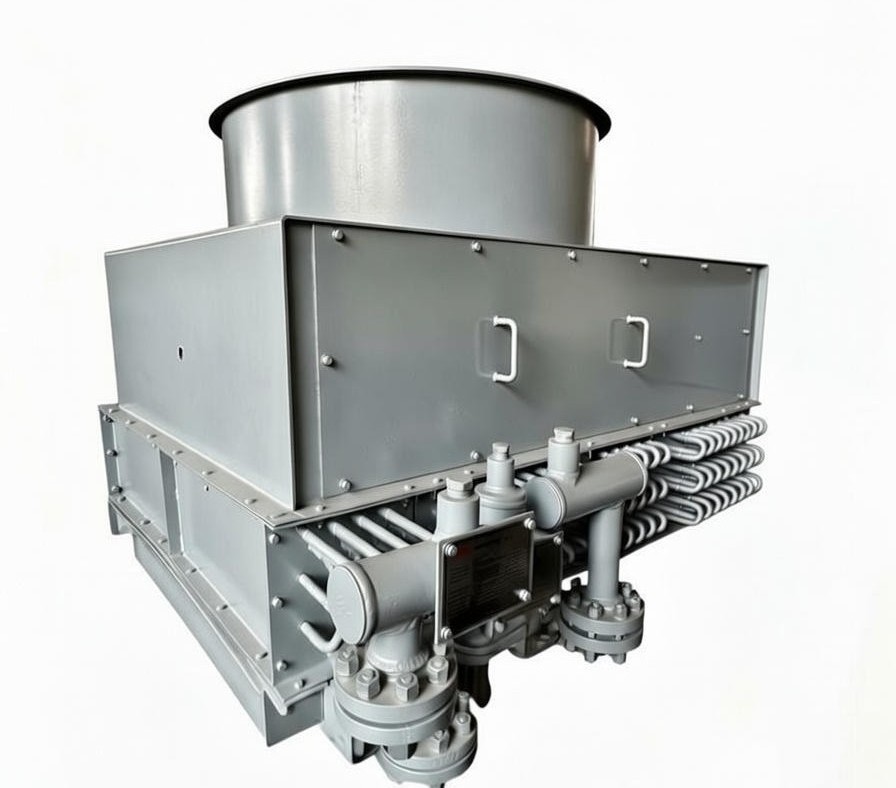

a) CNG Cooler Systems

CNG Coolers are engineered to efficiently manage gas compression from intermediate pressures of 12–19 bar up to 300 bar. This design minimizes the number of compression stages while accommodating larger flow rates and higher thermal loads.

1. Design Code: APL Standard (in line with API661 with deviations)

1. Material: SA179 Tubes with Aluminium Fins

1. Configuration: Induced or Forced Draft

1. Available Range: 3-Stage Natural Gas and One Oil Cooler Combined in a Single Unit

b) Bio-CNG Cooler Systems

Bio-CNG Coolers are designed to compress natural gas from near atmospheric pressure to 300 bar. Airfins provides complete Bio-CNG cooler assemblies that include:

1. 4 Gas Coolers and 1 Oil Cooler

1. Design Code: APL Standard (in line with API661 with controlled deviations)

1. Material: SA179 Tubes with Aluminium Fins

1. Configuration: Induced Draft or Forced Draft options available

1. Compact, modular structure for renewable Biogas & CNG applications.
